Santa Clarita Sewer Repair: Trenchless Sewer Line Replacement by Pipe Bursting in Santa Clarita
Santa Clarita Sewer Repair covers trenchless sewer lateral replacement by pipe bursting across the Santa Clarita Valley — a bursting head pulled through the old clay, cast iron or plastic line from one small pit to another, breaking the old pipe outward and drawing a new seamless HDPE pipe into its place under driveways, patios and trees.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
How pipe bursting works
Two pits are dug: one near the house, one at the far end of the lateral, usually near the property line or the main. A steel cable or rods are fed through the old pipe, a cone-shaped bursting head is attached with the new pipe behind it, and a hydraulic puller draws the head through. The head fractures the old pipe and pushes the fragments into the surrounding soil while the new pipe follows. The new pipe is high-density polyethylene (HDPE), heat-fused into one continuous length with no joints for roots to enter.
| Step | What happens | Typical time |
|---|---|---|
| Camera inspection | Confirms the path and locates ends | Under an hour |
| Pits | Two pits about 3 x 4 ft at the ends | Half a day |
| Pipe fusion | HDPE lengths fused into one pipe | 1–2 hours |
| Pull | Head and new pipe drawn through | 1–3 hours |
| Connections | New pipe joined at the house and the main | A few hours |
| Camera, inspection, backfill | Final video and inspection | Rest of the day |

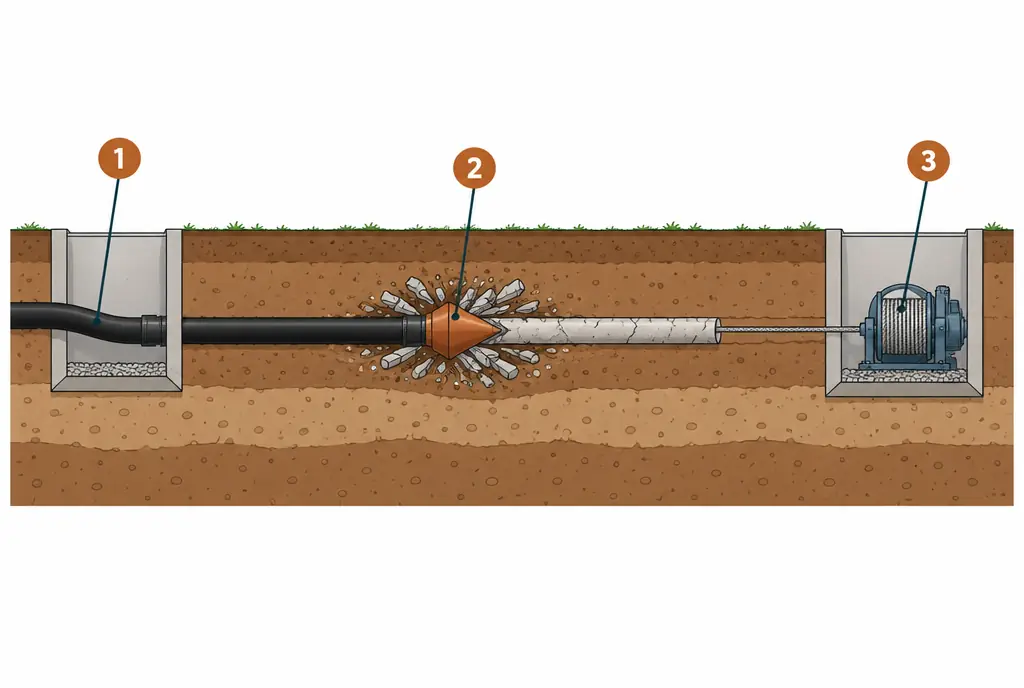

What the numbered markers show
- New HDPE pipe, fused into one continuous length, is fed into the ground at the entry pit behind the bursting head.
- The cone-shaped bursting head fractures the old pipe and pushes the pieces outward into the soil.
- The winch in the exit pit pulls the cable, drawing the head and the new pipe through the old pipe's path.
Where bursting beats digging
- Under driveways and patios — two pits instead of saw-cutting a strip of concrete the length of the line.
- Under mature trees — the old path is reused, so the roots along it are not trenched.
- Long laterals — the pull length hardly changes the work; trench length does.
- Undersized pipe — a 4 inch line can be burst and replaced with the same or a slightly larger size.
Limits of pipe bursting
Bursting needs room for two pits and for the puller. It struggles where the old pipe runs under a structure with no access at that end, or where gas, water or other utilities run close beside the lateral, since the expanding head pushes the soil sideways. Very sharp bends stop it. Ductile iron and some cast iron need a cutting head rather than a bursting cone.
After the pull
The new HDPE pipe is connected at each end with transition couplings, a two-way cleanout is usually added at the house pit, and the line is filmed end to end. The two pits are backfilled and the lawn or concrete over them is restored — far less restoration than a trench along the whole line.
Pipe bursting replaces the pipe and leaves the driveway where it was.
Trenchless Sewer Replacement (Pipe Bursting) — common questions
How much does pipe bursting cost in Santa Clarita?
About $90–$200 per foot in 2026; a 60 ft lateral lands roughly at $5,400–$12,000 before depth or street adjustments. Bursting under a driveway avoids most of the concrete restoration a trench would need.
Is pipe bursting the same as lining?
No. Bursting destroys the old pipe and pulls in a new one; lining builds a new pipe inside the old one. Bursting can replace a collapsed or undersized pipe; lining needs the old pipe to hold its shape.
Trenchless Sewer Replacement (Pipe Bursting): check availability and price range
Bookings aren't open yet — describe the sewer line and you get a Santa Clarita price range right here. Typical Santa Clarita Valley installed prices for residential sewer lateral work, labor and materials. This is a market estimate, not a quote. Permit fees, inspection fees and street restoration charges, where they apply, are not included.
